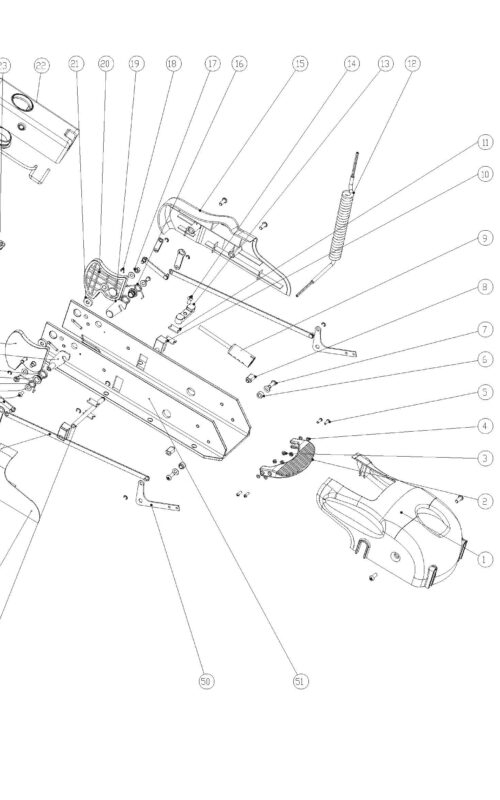

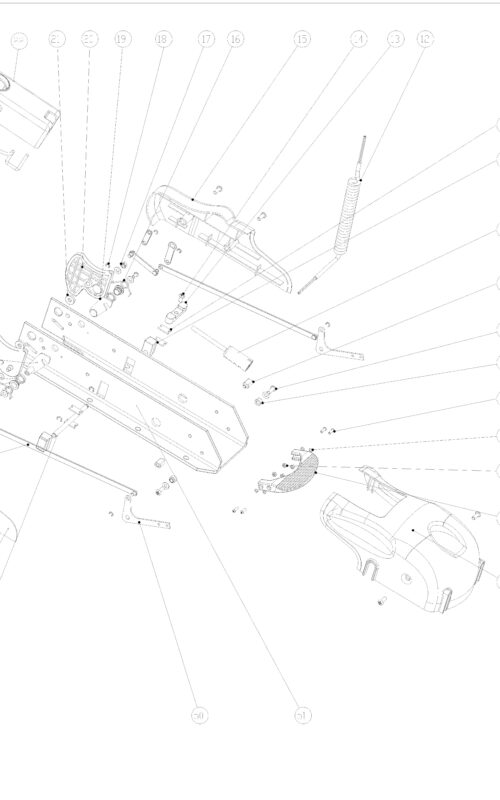

Watersnake Shadow Motor Schematics
Watersnake Shadow Motor Parts List
- Back Cover – HP8.010.003.15
- Baffle Block – HP8.369.079.00
- Bolt – HP8.903.060.07
- Bolt – HP8.902.022.00
- Bolt – HP8.903.059.00
- Bolt – HP8.902.196.00
- Bolt – HP8.902.193.45
- Bolt – HP8.902.195.00
- Bolt – HP8.902.194.45
- Bolt – HP8.902.198.00
- Bolt – HP8.903.050.00
- Bolt – HP8.902.197.00
- Bolt – HP6.480.002.00
- Bottom Cover of Turning Box – HP8.010.006.15
- Bottom Plage – HP8.601.050.00
- Bottom Plate – HP8.601.049.27
- Brush Frame Assy – HP6.670.029.00
- Bushing – HP8.210.332.00
- Button (Left) – HP8.337.059.71
- Button (Right) – HP8.337.061.71
- Button Spring – HP8.382.144.00
- C-Retaining Ring – HP8.245.078.00
- C-Retaining Ring – HP8.245.079.00
- C-Retaining Ring – HP8.245.080.00
- Cable Clip – HP6.428.019.00
- Clutch Plate Compression Spring – HP8.382.015.00
- Connecting Rod – HP8.350.003.00
- Connecting Rod Bolt – HP8.926.018.00
- Connecting Rod Nesting – HP8.210.337.00
- Connecting Rod Sleeve – HP8.220.245.00
- Continuous Switch Assy – HP6.356.014.71
- Crank Arm – HP8.350.006.00
- Crank Shaft Sleeve – HP8.210.336.00
- Cross Screw – HP8.903.042.00
- Cushion – HP8.683.042.00
- Cushion Baffle Plate – HP8.610.082.45
- Elastic Cushion Block – HP8.683.041.00
- Foot Pad Sticker – HP8.802.017.00
- Footplate – HP8.335.000.00
- Front Cover – HP8.076.028.70
- Front Cover – HP8.010.002.15
- FSC-2 Speed Control Unit – HP6.702.004.00
- FSC-3 Speed Control Unit – HP6.702.012.00
- Gasket –
- Gasket –
- Gear Bushing – HP8.210.339.00
- Gusset Plate Pin – HP8.264.329.45
- Handle – HP8.621.027.00
- Head Bottom Cover – HP8.076.030.00
- Head Top Cover – HP8.076.029.00
- Helix Cable Assy – HP6.647.032.00
- Hexagon Socket Set Screws with Flat – HP8.904.087.16
- Hexagonal Washer – HP8.610.049.00
- Inching Button – HP8.337.062.71
- Insulating Bush – HP8.626.002.82
- Left Body of Depth of Adjustment Collar – HP8.264.150.00
- Left Connecting Rod Pin Assy – HP6.201.016.45
- Left-Handed Torsion Spring – HP8.383.109.00
- Left Portable Plate Assy – HP6.154.001.00
- Left Side Plate – HP8.634.062.70
- Locating Bush – HP8.210.335.00
- Lock Nut – HP6.482.002.00
- Lock Washer – HP8.946.011.07
- Motor Assy – HP6.714.002.00
- Nut – HP8.379.019.07
- Nut M4 – HP8.379.052.00
- Nut M6 – HP8.379.053.00
- O-Ring – HP8.662.064.00
- O Ring Seal – HP8.662.015.00
- O Ring Seal – HP8.662.016.00
- Oil Bearing – HP8.251.000.00
- Oil Bearing –
- Pentiometer – HP6.630.006.00
- Pin – HP8.264.157.00
- Pin – HP8.264.315.00
- Plug 1 – HP7.747.003.00
- Press Piece – HP8.263.076.00
- Prop – HP6.393.001.00
- Prop Nut – HP6.482.001.00
- Push Rod – HP8.350.002.00
- Push Rod Pin Sleeve – HP8.220.244.00
- Relay Control Plate – HP6.672.011.00
- Retainer Ring – HP8.683.049.45
- Right Body of Depth Adjustment Collar – HP8.242.151.00
- Right Connecting Rod Pin Assy – HP6.201.017.45
- Right-Handed Torsion Spring – HP8.383.110.00
- Right Portable Plate Assy – HP6.154.002.00
- Right Side Plate – HP8.634.063.70
- Rocker Arm Sleeve Washer – HP8.940.091.00
- Rotar Assy – HP6.656.004.00
- Rotation Axis – HP8.303.022.45
- Rotor Assy – HP6.656.003.00
- Rubber Cushion – HP8.683.039.00
- Rubber Housing – HP8.683.040.00
- Sacrificial anode – HP7.690.001.00
- Screw – HP8.903.056.00
- Screw – HP8.903.030.00
- Sealing Ring – HP8.662.014.00
- Sealing Ring – HP6.475.000.00
- Sealing Ring – HP8.662.063.00
- Secondary Rod Assy – HP6.201.014.00
- Self Tapping Screw – HP8.903.101.00
- Shaft – HP6.657.059.99
- Shaft – HP6.657.060.99
- Six Hole Plug – HP7.747.021.00
- Sleeve – HP8.210.338.00
- Small Gear – HP8.415.164.00
- Socket Assembly – HP6.647.033.00
- Speed Regulating Handle Assy – HP6.465.038.71
- Spring – HP8.382.063.00
- Stator Assy – HP6.652.001.00
- Stay Rod Pin – HP6.201.015.00
- Steel Ball – HP8.322.076.00
- Stud Bolt Axis Pin – HP8.264.322.45
- Switch – HP7.330.000.00
- Tilt Transducer – HP6.708.001.00
- Top Cover – HP8.076.027.00
- Top cover of Turning Box – HP8.010.005.15
- Washer – HP8.940.310.00
- Washer – HP8.940.268.00
- Washer – HP8.940.021.00
- Washer – HP8.940.313.00
- Waterproof Cover – HP8.634.061.00
