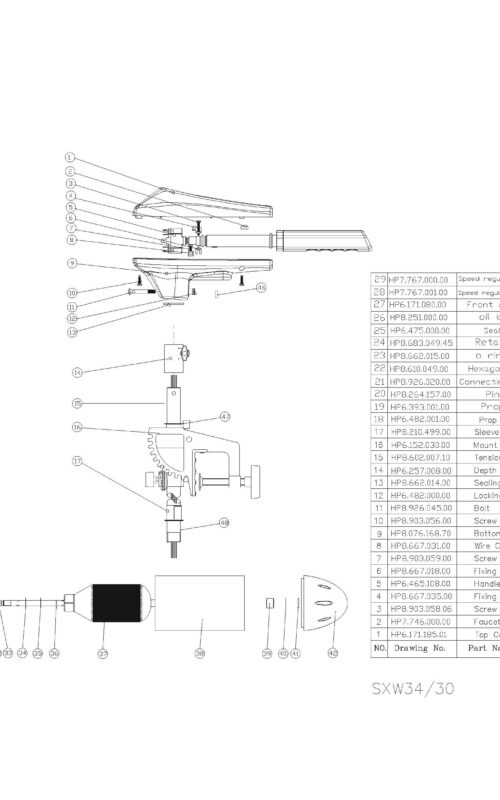

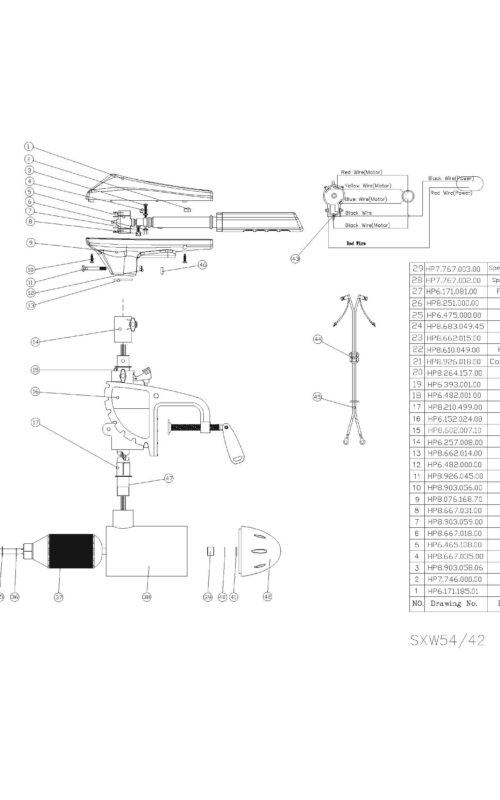

Watersnake Venom Motor Schematics
Watersnake Venom Motor Parts
- Bolt – HP8.926.045.00
- Bolt – HP8.903.060.07
- Bolt – HP8.903.059.00
- Bottom Cover – HP8.076.168.70
- Brush Holder Assy – HP6.670.001.00
- Brush Holder Assy – HP6.670.002.00
- Bushing – HP8.220.385.70
- Bushing – HP8.210.499.00
- Bushing – HP8.210.500.00
- Cable Clip – HP6.428.019.00
- Connecting Rod Bolt – HP8.926.018.00
- Connecting Rod Bolt – HP8.926.020.00
- Depth Collar Assy – HP6.257.008.00
- E-Ring – HP8.245.031.16
- Faucet – HP7.746.000.00
- Fixing Clamp – HP8.667.018.00
- Fixing Clamp – HP8.667.035.00
- Front Cover Assy – HP6.171.081.00
- Front Cover Assy – HP6.171.080.00
- Handle Assy – HP6.465.108.00
- Hexagonal Washer – HP8.610.049.00
- Insulating Bush – HP8.626.002.82
- Left Ornament – HP8.251.001.00
- Left Ornament – HP8.241.001.00
- Locking Nut – HP6.482.000.00
- Main Battery Cable – HP6.647.003.00
- Main Battery Cable – HP6.647.002.00
- Mount Assy – HP6.152.024.00
- Mount Assy – HP6.152.030.00
- O Ring Seal – HP8.662.015.00
- O Ring Seal – HP8.662.016.00
- O Ring Seal – HP8.662.013.00
- Oil Bearing – HP8.251.000.00
- Pin – HP8.264.157.00
- Prop – HP6.393.001.00
- Prop Nut – HP6.482.001.00
- Rear Cover – HP8.010.003.158
- Rear Cover – HP8.010.001.15
- Retainer Ring – HP8.683.049.45
- Rotar Assy – HP6.656.004.00
- Rotor Assy – HP6.656.002.00
- Screw – HP8.903.058.06
- Screw – HP8.903.056.00
- Sealing Ring – HP8.662.014.00
- Sealing Ring – HP6.475.000.00
- Shaft – HP6.657.116.99
- Shaft – HP6.657.115.99
- Sleeve – HP8.210.449.00
- Speed Regulating Coil (Down) – HP7.767.000.00
- Speed Regulating Coil(In) – HP7.767.003.00
- Speed Regulating Coil(Out) – HP7.767.002.00
- Speed Regulating(Down) – HP7.767.001.00
- Spring – HP8.382.063.00
- Spring – HP8.382.062.00
- Stator Assy – HP6.652.001.00
- Stator Assy – HP6.652.002.01
- Tension Block – HP8.602.007.10
- Top Cover Assy – HP6.171.185.01
- Washer – HP8.940.311.00
- Washer – HP8.940.312.00
- Washer – HP8.940.309.00
- Washer – HP8.940.310.00
- Wire Clip – HP8.667.031.00
