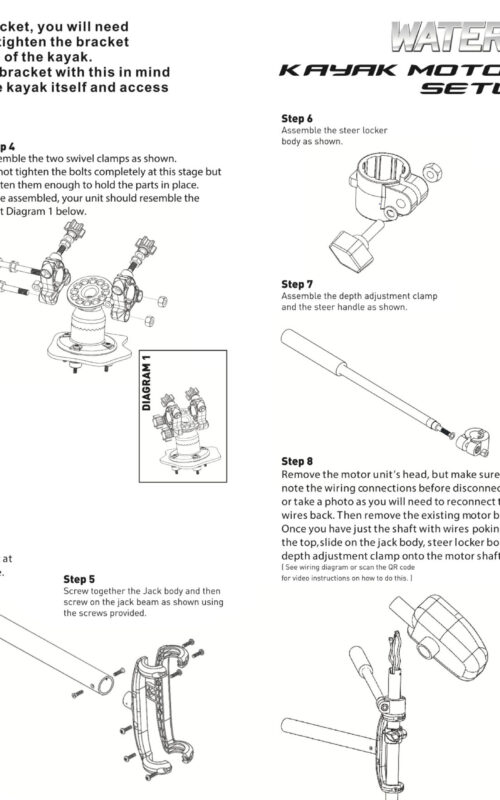

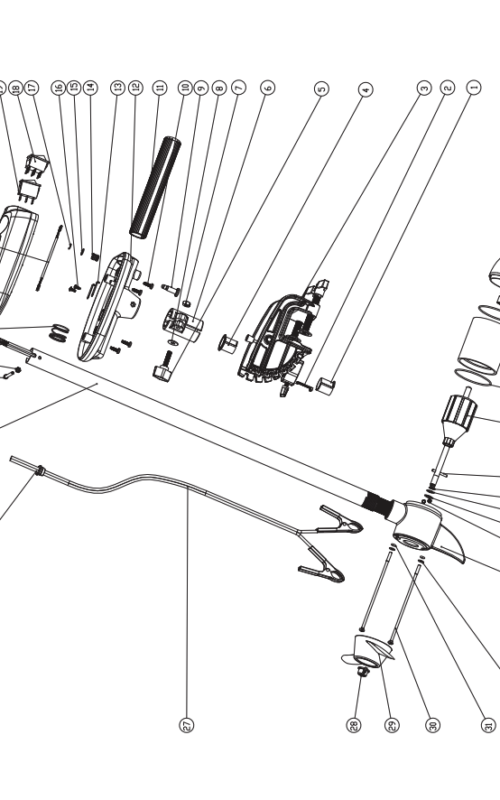

Watersnake ASP Motor and Kayak Bracket Schematics
Watersnake ASP Motor and Kayak Bracket Parts List
- Back Cover – HP8.010.010.99
- Base – KB013
- Base Cushion – KB015
- Battery Wire Clip – HP8.667.025.00
- BG-M5 x 40 Screw – KB014
- Bolt – HP8.903.059.00
- Bolt – HP8.926.035.45
- Bolt – HP8.902.213.00
- Bolt – HP8.903.023.06
- Bolt – HP8.904.059.00
- Bolt – HP8.926.042.45
- Bottom Cover Assy (SWT24) – HP6.171.040.01
- Bottom Cover Assy (T24) – HP6.171.040.00
- Brush Assy – HP6.611.006.00
- Brush Holder – HP7.736.005.00
- C Washer – HP8.245.079.45
- Column – KB012
- Depth Adjust Collar Assy – HP8.242.123.00
- Depth Adjust Collar Assy – HP6.257.000.00
- Depth Adjuster Clamp – KB004
- Front Cover – HP6.171.041.99
- GB-M5 Nut – KB017
- GB-M5 Washer – KB016b
- GB-M5 x 40 Washer – Larger – KB016a
- GB-M8-Nut – KB005
- GB-M8-Washer – KB006
- GB-M8 x 80 Bolt – KB010
- Inclinded Plate – KB011
- Jack Beam – KB008
- Jack Beam Screw – KB009
- Jack Body – KB001
- Jack Body Screw M4 x 14 – KB002a
- Jack Body Screw M4 x 17 – KB002b
- Locking Nut – HP8.379.059.00
- M8 Spacer – KB020
- M8 x 45 Screw – KB019
- M8 x 90 Screw – KB018
- Main Battery Wire – HP6.647.006.00
- Motor Assy (SWT24) – HP6.062.219.00
- Motor Assy (T24) – HP6.062.197.00
- Motor Assy(T18-FW) – HP6.062.044.00
- Motor Assy(T18-SW) – HP6.062.079.00
- Motor Lead Assy – HP6.647.009.00
- Motor Lead Assy – HP6.647.008.00
- Nylon Cable Tie – HP8.636.008.00
- Oil Bearing – HP8.251.004.00
- Pin – HP8.264.157.00
- Press Patch – HP8.263.088.00
- Prop – HP8.325.004.86
- Prop Nut – HP8.939.001.00
- Retainer Ring – HP8.683.049.45
- Rotor Assy – HP6.656.014.00
- Rotor Assy – HP6.656.018.00
- Screw – HP8.903.014.00
- Screw –
- Seal Ring – HP8.683.048.00
- Seal Ring – HP8.662.073.00
- Seal Ring – HP8.662.074.00
- Shaft – HP8.626.041.27
- Shaft – HP8.626.041.24
- Speed Control Assy – HP6.210.049.00
- Spring – HP8.382.154.16
- Spring – HP8.382.152.08
- Spring Washer – HP8.940.266.00
- Stator Assy – HP6.652.007.01
- Stator Assy – HP6.652.010.01
- Steer Handle Assy. – KB007
- Steer Handle Washer – KB007a
- Steer Locker Body – KB003a
- Steer Locker Nut – KB003d
- Steer Locker Screw – KB003b
- Steer Locker Washer – KB003c
- Switch – HP8.330.006.00
- Switch – HP8.330.005.00
- Switch – HP7.330.005.00
- Switch – HP7.330.006.00
- Swivel Clamp – KB021
- Top Cover (T18-FW) – HP8.076.055.00
- Top Cover (T18-SW) – HP8.076.055.70
- Washer – HP8.940.673.45
- Washer – HP8.940.671.00
- Washer – HP8.940.672.00
- Washer – HP8.940.138.00
- Wire Assy – HP6.647.007.00
